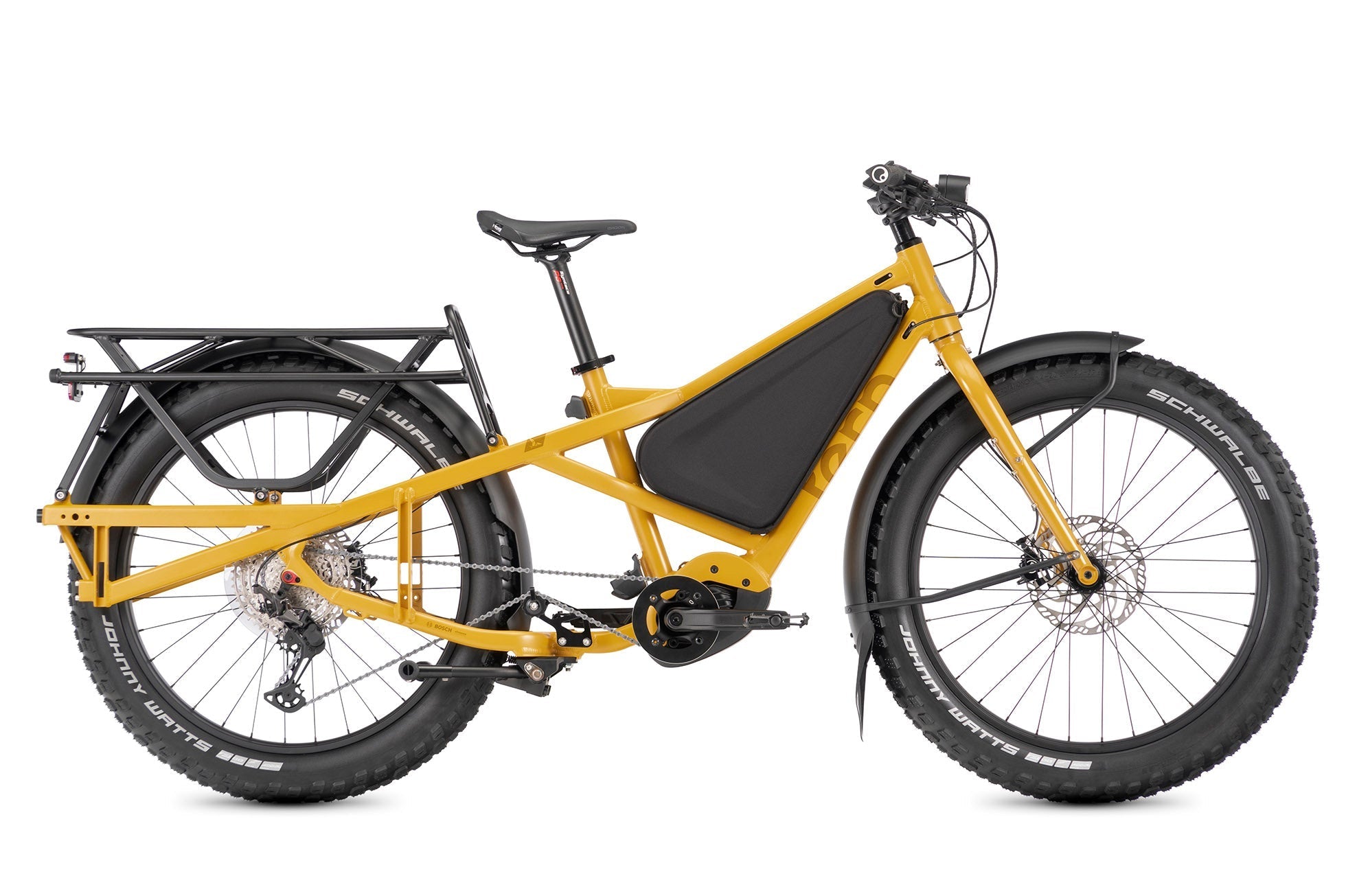

A running list of Tern Orox cargo bike parts, accessories, and other compatibility questions I've encountered.
Table of Contents
- Orox S12 Parts List
- Orox R14 Parts Lists
- Compatible Accessories
- Service Tips
- Tern Orox Owner Briefing
Tern Orox S12 Parts Lists
- Frame - Tern Orox, 6061-AL, patented design, EFBE tested and approved. Sizes MD and LG
- Fork - Atlas X, butted chromoly steel, EFBE tested and approved
- Handlebar – Level Nine, 800mm, eMTB Approved – Tern SKU A.02006.0047.03.04
- Stem (M) – Level Nine, 45mm – Tern SKU A.02007.0041.03.04
- Stem (L) – Level Nine, 65mm – Tern SKU A.02007.0042.03.04
- Headset – 1-1/8 to 1.5", angular contact – Tern SKU A.02010.0024.00.00
- Seatpost – Syntace P6, 34.9 x 400mm – Tern SKU A.02014.0050.03.00
- Seatpost Clamp – 34.9 mm, ID 37mm – Tern SKU A.02015.0021.03.01
- Saddle – Standard
- Grips – Ergon
- Front Brake – Magura MT5, 2 Finger, 850mm
- Rear Brake – Magura MT5, 2 Finger, 2150mm
- Rotor (F) – Magura 6-bolt, 203 mm
- Rotor (R) – Magura 6-bolt, 203 mm
- Cassette Body – 12-Speed – Tern SKU F.03002.0013.00.00
- End Cap – Front Hub – Tern SKU F.03002.0007.00.00
- Front Spokes (27.5") – L 274 mm, 13G
- Front Spokes (29") – L 291 mm, 13G
- Rear Spokes (27.5") – L 274 mm, 13G
- Rear Spokes (29") – L 291 mm, 13G
- Nipples – 13 mm, 13G
- Tire – Schwalbe Johnny Watts, 27.5", 100-584
- Thru Axle (F) – 15 x 171 mm
- Thru Axle (R) – 12 x 223.5 mm
- Rear wheel bearings - 6903
- Freehub takes 4 bearings, 2x 6803 and 2x 6802 RV (Thanks, Shaun Moulds)
- Chain – KMC e12T Turbo, 12-speed, 152 Link
- Chainring – 32T BCD 104
- Crankarms – 170 mm – Tern SKU A.04011.0011.00.00
- Rear Cog – Shimano Deore 10–51T 12 speed
- Rear Derailleur – Shimano Deore XT M8100, 12-Speed
- Shifter – Shimano Deore SL-M6100-R, 12-Speed
- Derailleur Hanger – Red & Black – Tern SKU A.07004.0059.00.00
- Battery Lock – ABUS DT3 T82
- Chainstay Protector – Orox – Tern SKU A.05009.0040.00.00
- Chain Guide Pulley (Wheel/Bracket) – Multiple SKUs
- Vertical Parking Frame Support – Tern SKU F.07004.0036.03.00
- Kickstand – Atlas Kickstand XL Gen 2 – Tern SKU F.02017.0023.03.00
- Light (F) – Ignis Z3EK pro – Tern SKU F.05005.0003.03.00
- Light (R) – Roxim R7EA w/ Brake Light – Tern SKU A.05005.0046.03.00
- Light Cable – Bosch BES3 Source Cable – Tern SKU A.05005.0044.00.00
- Light Remote – Modular RB5, Magura Clamp – Tern SKU F.05005.0004.03.00
- Light Bracket R – Tern SKU F.07004.0040.03.00
- Rack – Atlas X Matte Black – Tern SKU F.05004.0008.03.12
- Rack Support – Vertical Parking – Tern SKU F.07004.0035.03.00
- Bosch Battery - 800Wh PowerPack
- Bosch Display - Kiox 300
- Bosch Remote - LED Remote
- Bosch Speed Sensor Cable – 1200 mm
Tern Orox R14 Parts Lists
Frame & Fork
• 6061-AL
• Sizes MD & LG
• Atlas X chromoly steel fork
Cockpit
• Handlebar – Level Nine, 800mm, eMTB Approved
• Stem (M) – 45mm
• Stem (L) – 65mm
• Headset – 1-1/8" to 1.5", angular contact
• Seatpost – Syntace P6, 34.9 x 400mm
• Seatpost Clamp – 34.9 mm, ID 37mm
• Saddle – ?
• Grips – ?
Brakes
• Front Brake – Magura MT5, 2 Finger, 850mm
• Rear Brake – Magura MT5e, 2150mm
• Rotor (F) – Magura 6-bolt, 203mm
• Rotor (R) – Rohloff 4-bolt, 203mm
Wheels & Tires
• Front Spokes – 27.5": 274mm / 29": 291mm
• Rear Spokes – 27.5": 252mm / 29": 266mm (Rohloff)
• Nipples – 13 mm, 13G
• Rims – 27.5": SKU A.03006.0201.00.00 / 29": SKU A.03006.0202.00.00
• Tires –
– 27.5": Schwalbe Johnny Watts
– 29": Schwalbe Johnny Watts 365
• Thru Axle (Front) – 15 x 171 mm
Drivetrain
• Belt – Gates CDX 151T
• Chainring – CDX 42T
• Crankarms – 175mm
• Rear Cog – Gates CDX:EXP 19T
• Rear Hub – Rohloff Speedhub 500/14 A12 DB OEM2 XXL
• Shifter – Rohloff Twist Shifter Light
• Derailleur Hanger – Red & Black — SKU: A.07004.0059.00.00
Bells & Whistles
• Battery Lock – ABUS DT3 T82
• Chainstay Protector – Orox — SKU: A.05009.0040.00.00
• Chain Guide Pulley – For HSD / Quick Haul — SKU: F.07004.0017.00.00
• Vertical Parking Frame Support — SKU: F.07004.0036.03.00
• Kickstand – Atlas Kickstand XL Gen 2 — SKU: F.02017.0023.03.00
• Front Light – Ignis Z3EK pro
• Rear Light – Roxim R7EA w/ Brake Light
• Light Cable – Bosch BES3 Source Cable
• Light Remote – RB5 Modular w/ Magura Clamp
• Bosch Battery - 800Wh PowerPack
• Bosch Display - Kiox 300
• Bosch Remote - LED Remote
• Bosch Speed Sensor Cable – 1200 mm
Compatible Accessories
The best place to find compatible accessories is Tern's Compatibility Checker. I will add oddities here.
Stormbox: Will NOT fit due to the width of the rear rack
